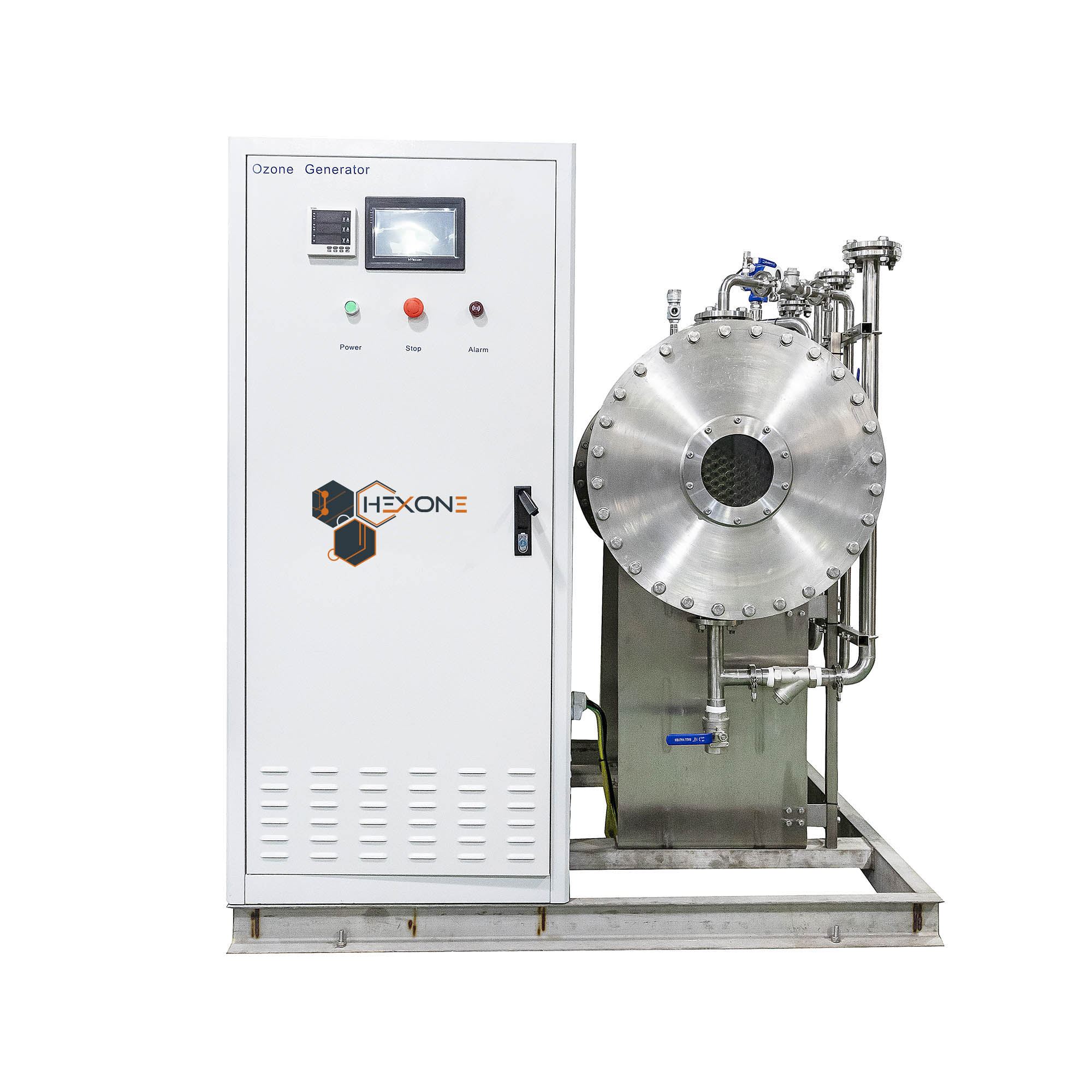

3 Kg Ozone Generator (AIR SOURCE)
Önceki
Sonraki
PARAMETERS
Ozone production: 3Kg/h
Ozone concentration: 25mg/L
Air Flow Rate: 120m3/h
Rated Power:51KW
Cooling water flow rate: 12m3/h
Working pressure:0.1Mpa
Power Supply: 3Phase / 380V/50HZ
OZONE GENERATOR SPECIFICATION
| Ozone Output: | 300g/h |
| Ozone Concentration: | 120mg/ L |
| Power Supply: | 380V / 3PH / 50Hz |
| Running Power rate: | 2.5KW |
| Cooling Mode: | Cooling Water |
| Flow of Cooling Water: | 0.6m3/h |
| Cooling Water Temp.: | 0～20°C |
| Discharge Mode: | High Frequency and High voltage |
| Material of ozone chamber: | Stainless Steel 304 |
| Material of electrode tubes: | Stainless Steel 316 |
| Material of dielectric tubes: | Quartz Glass Tubes |
| Relative Humidity: | ≤60% |
| Air Dew Point： | ≦-45℃ |
| Oxygen Consumption: | 2.5m3/h at 93% oxygen purity |
| Installation Environment: | Indoor |
| Running Environment Temp.: | 0-45°C |
| Storage Environment Temp.: | 15℃～40°C |
| O2 inlet/O3 outlet pipe | DN15 |
| Water inlet/outlet pipe | DN15 |
| Size: | 129*5001480mm |
Weight:
| 250Kg
|
